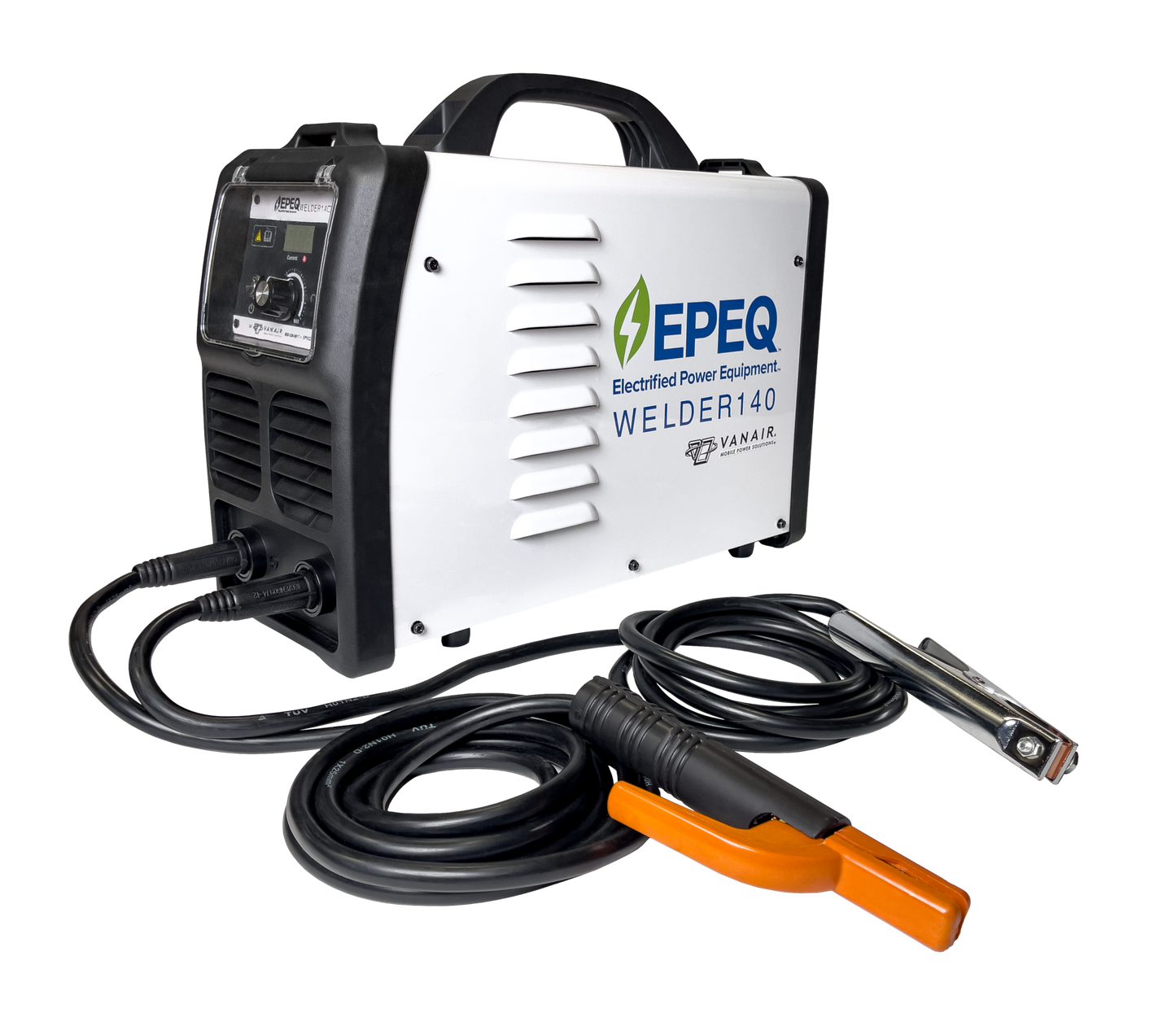

EPEQ™ WELDER140
Lithium-Powered, Portable 34 Lb. Welder
When you need Clean, Quiet, Power™ in a smaller, smarter, and portable package, look no further than the new EPEQ™ Electrified Power Equipment™ product lineup. The Vanair® EPEQ™ WELDER140 is a 140A, CC Stick welder which combines the flexibility of lithium-powered welding with Vanair’s long history of providing top-level welding capabilities. The welder features a hot start for easier welding and can weld 10-12 pieces of 3.2mm welding rods, or 20-25 pieces of 2.5mm welding rods, when in full charge. The EPEQ™ Welder provides two charge modes: 1.5-hour fast charge and 3-4 hours standard charge. The ability to carry the entire welder and cables right next to the equipment being worked on, makes our WELDER140 user-friendly for those light and fast repair jobs in the field.
EPEQ™ WELDER PERFORMANCE AND SPECIFICATIONS
- Lithium Powered Welder Containing Internal Battery
- Capacity: 140A, CC Stick Welder
- Size: Lightweight Design at 34 lbs.
- Duty Cycle: 20% 140A; 50% 110A; 100% 80A
- Dimensions: 18.3” L x 7.6” W x 14.9” H
- Lead length: 10 ft.
- Clean, Quiet Operation
- User-friendly for Quick Repair Jobs
- Portable; Ability to Carry the Entire Welder and Cables
FEATURES
- Lithium-Ion Battery Replaces AC Power Supply for Convenience and Mobility
- Built-In High Power Constant-Current and Constant-Voltage Charging Unit for Fast Charging
- Ergonomic Handle and Weight Balance Design for Easy Carrying
- Hot Start for Easier Welding
- High Accuracy Display for Current
- Easy to Read LED Display
- Waterproof, Dust Proof, Shock Proof,
- Rugged and Durable Battery Pack
BUILT-IN SAFETIES
- Over Charge Protection
- Overload Protection
- Over Discharge Protections
- High Temperature Protection
- Undervoltage and Overvoltage Protection
- Short-Circuit Protection
- Battery Cell Positive Thermal Coefficient
(PTC) Protection - Reset Protection
- Temperature Coherence Protection
- Current Equalization Protection
Product Specification
TYPE | SPECIFICATION | |
---|---|---|
Model | EPEQ™ WELDER140 | |
Battery Capacity | 604.8WH | |
Battery Type | Lithium-Ion | |
Input Voltage Range | 100V-240V AC | |
Input Voltage Frequency | 50/60HZ | |
Charging Mode | CC – CV | |
Charging Time | 3 Hours – Standard Charge / 1.5 Hours – Quick Charge | |
Charging Temperature | 32°F – 113°F (0°C – 45°C ) | |
Output Current Range | MMA DC40-140 | |
No – Load Voltage | 70V± l0V | |
Duty Cycle (MMA) | 20% 140A / 50% 110A / 100% 80A | |
Discharging Temperature | 14° – 140°F ( -10° – 60°C) | |
Arc Force | Auto | |
Hot Start | Built-In | |
Cooling Mode | Smart Double Air Cooling | |
Protection Class | IP23 | |
Lead Length | 10 ft. | |
Weight | 34 lbs. (15.5KG) | |
Dimensions | 18.3 L x 7.6 W x 14.9 H (in) / 466 L x 193 W x 379 H (mm) |
